TRF5045S 50mm wave carbon road bike clincher rims 29mm wide

Tire bed: Clincher ( Tubeless ready )

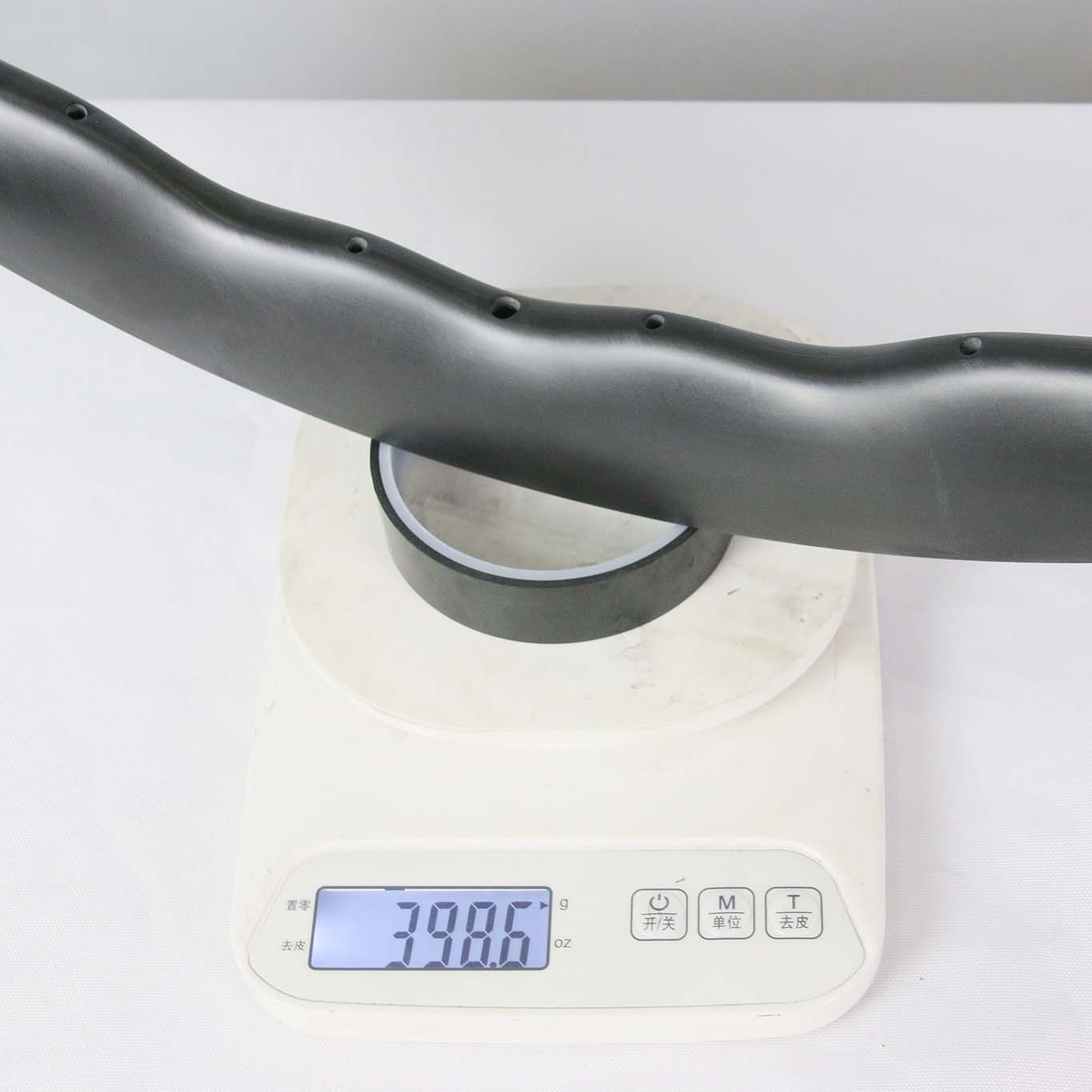

Rim weight:400g+/-15gr
Rim out wide: 29mm
Inner wide: 22mm
Rim depth: 50mm
Offset: 0mm
Brake: Disc brake

EMAIL

TRF5045S 700c 50mm wave carbon road bike clincher rims 29mm wide

50 DEEP | 29 WIDE EXT |  390G suppler light  | Tubeless ready | Wave carbon rims |

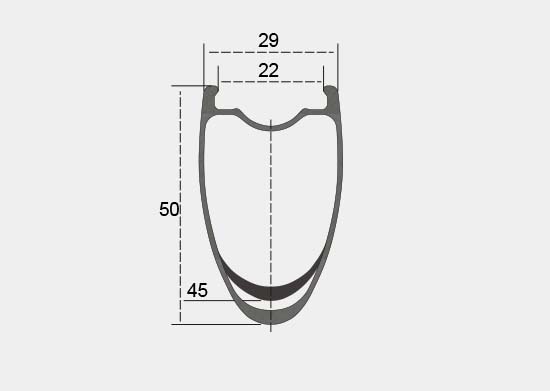

The TRF5045S carbon rims showcase a strikingly sleek design with wave-shaped sharp contours, exuding a dynamic aesthetic that combines aerodynamics and visual appeal. Featuring a 50mm-depth aero spoke structure, these rims are meticulously engineered to minimize wind resistance, while the wavy aero profile at 45mm depth further enhances airflow efficiency, ensuring both speed and stability during rides.   With an internal width of 22mm, the rims are perfectly tailored for 700C tires ranging from 28mm to 35mm, offering optimal compatibility for various cycling needs—whether for competitive racing or casual cruising. Crafted from high-performance carbon fiber, these rims redefine lightweight excellence, with an ultra-light version tipping the scales at a mere 385g, making them a testament to advanced material technology and precision craftsmanship.   Beyond their functional superiority, the TRF5045S rims elevate the visual allure of any bicycle, blending minimalist elegance with cutting-edge design. The carbon fiber weave not only ensures exceptional strength-to-weight ratio but also adds a premium, glossy finish that catches the eye, making these rims a statement piece for cyclists who demand both performance and style. Whether conquering steep climbs or dominating flat roads, these rims embody the perfect fusion of form and function, setting a new standard for lightweight, aerodynamic cycling components.


Item No.: TRF5045s

Size: 700C x 29mm

Material: Full Carbon Toray T700 & T800

Type: Clincher, Tubeelss compatible

Weight: Standard 475±15g, Flyweight 400±15g

ERD: 540mm

Outer Width: 29mm

Inner Width: 22mm

Depth:  50mm

Offset: 0mm

Brake System: Disc brake and rim brake, Also can do High TG 255 brake

Max Spoke Tension:  140kgf

Max Tire Pressure: 110psi/ 7.58bar

Max Weight Limit:  110kg

Braking  System: Disc brake / Rim brake

Applicable Bicycle: Road / CX / Gravel

Appearance: UD/ marble

Finishing: Matte/Glossy

Standard: En Standard

Assembly Hole Dia: 8.5mm

Spoke Hole Dia: 4.5mm

Valve Hole Dia: 6.5mm

Roundess:<0.3mm
