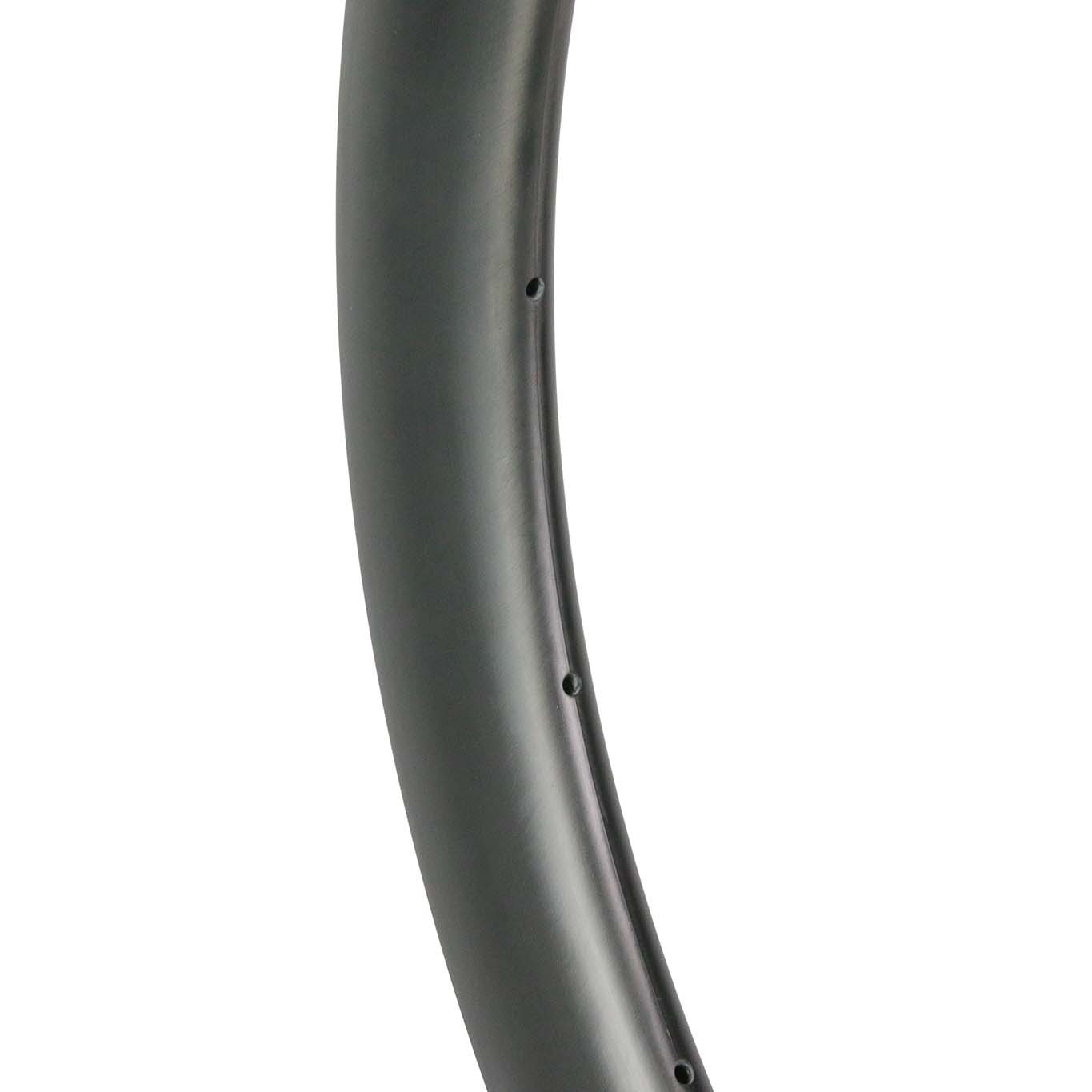

Aero Disc Carbon Fiber Road Bike Rims 23mm Inner 50mm Depth TRW50S

Model: TRW50S
Bead Type: Clincher tubeless ready
Rim weight: 415g+/-15gr
Rim out wide: 34mm
Rim inner wide: 23mm
Rim depth: 50mm
Product can be used on road / gravel bike wheels

EMAIL

50 DEEP | 34 WIDE EXT | 23 WIDE INT | 415G Flyweight

    At 415g with an aerodynamic 50mm deep profile, Toray T700/T800 carbon-fibre. Unidirectional sidewalls with UD weave bed and spoke areas. The result is a wheel that is both incredibly lightweight and stiff, making it the perfect choice for serious cyclists looking to gain a competitive edge. The unidirectional sidewalls provide exceptional strength and resistance to impact, while the UD weave bed and spoke areas ensure a smooth, efficient ride. Whether you're climbing steep hills or sprinting for the finish line, these wheels will help you perform at your best.

Tubeless-ready – designed to work excellently with normal clincher tires and tubes or tubeless tires.

Rounded U-shape 50mm deep aero profile


Item No.: TRW50S

Size: 700C

Material: Full Carbon Toray T700 & T800

Type: Clincher (Tubeless Ready)

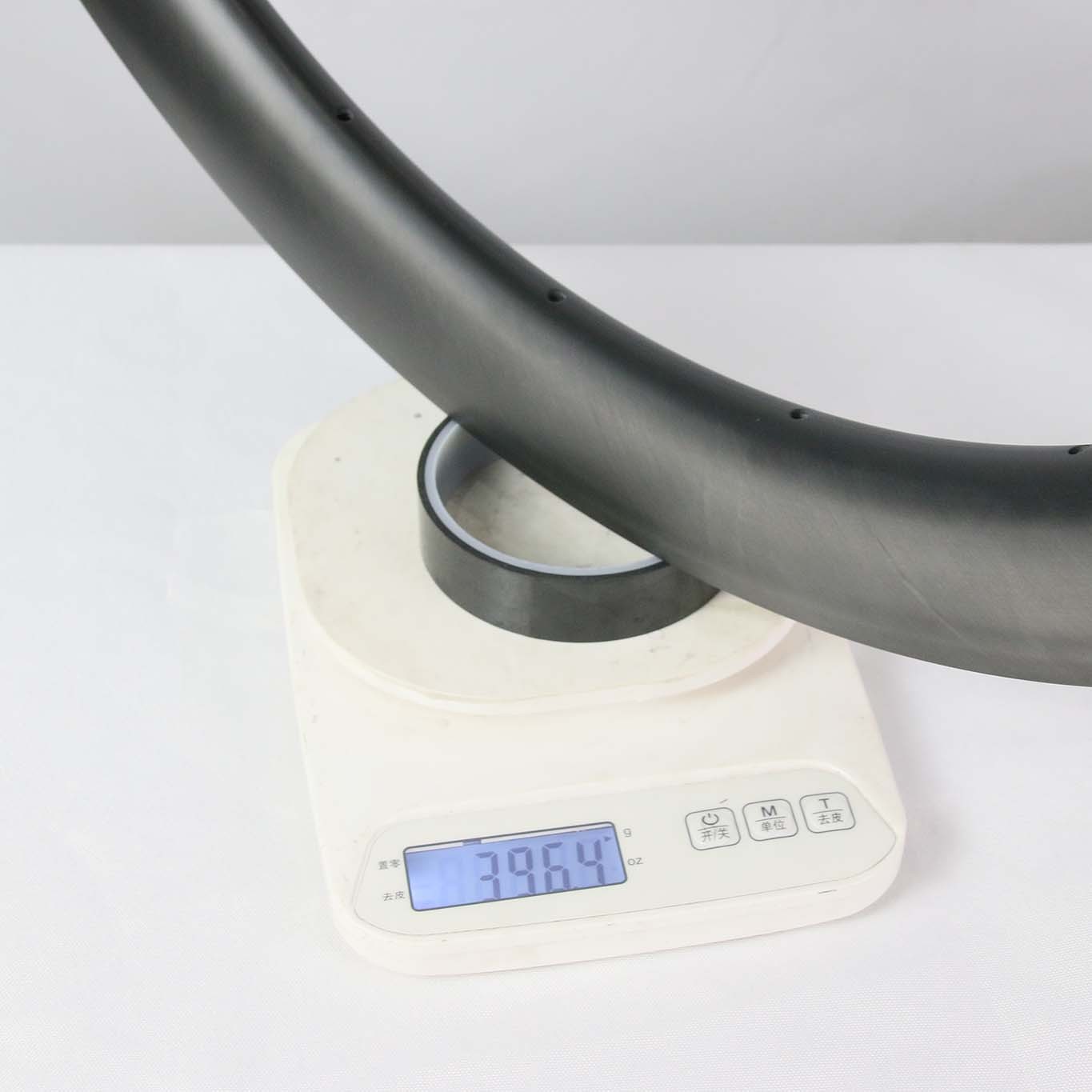

Weight: Standard 475±15g, Flyweight 415±15g,

ERD: 540mm

Inner Width: 23mm

Outer Width: 34mm

Depth:  50mm

Holes: 18-32H

Brake System: Disc / Rim brake

Max Spoke Tension:  140kgf

Max Tire Pressure: 110psi/ 7.58bar

Max Weight Limit:  110kg

Braking  System: Disc Brake

Applicable Bicycle: Road/CX/Gravel

Appearance: UD/3K/12K / X-weave

Finishing: Matte/Glossy

Standard: En Standard

Assembly Hole Dia: 8.5mm

Spoke Hole Dia: 4.5mm

Valve Hole Dia: 6.5mm

Roundess:<0.3mm
