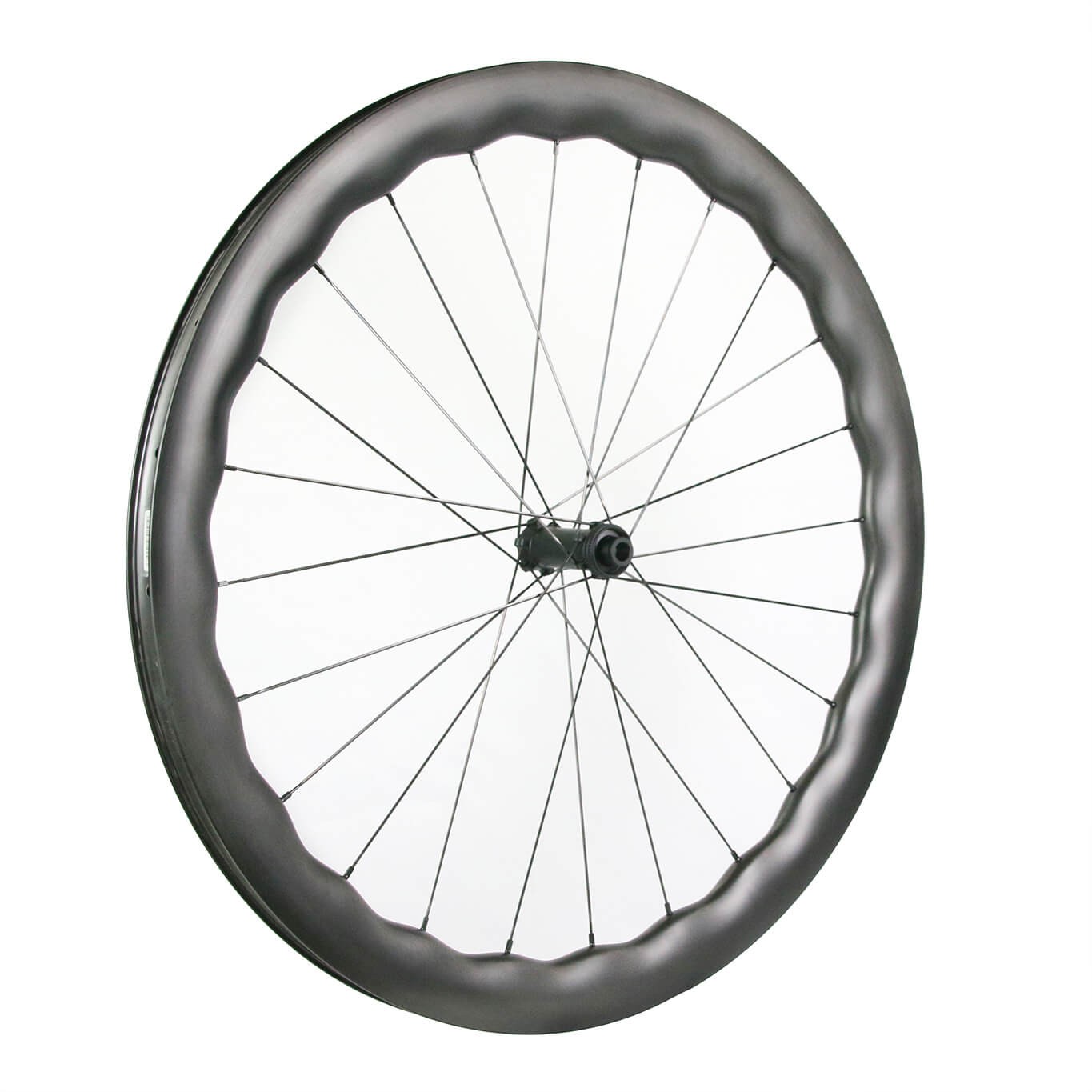

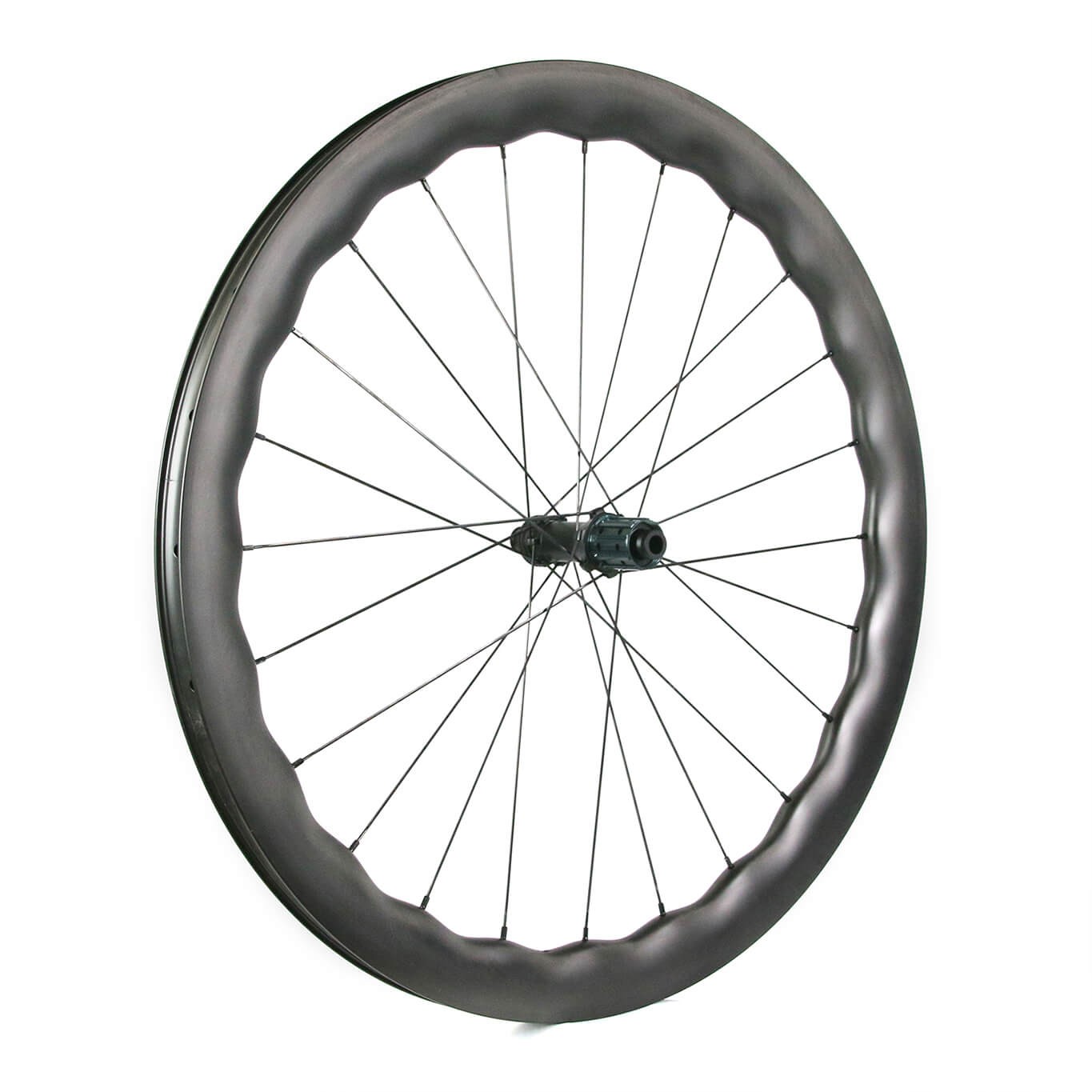

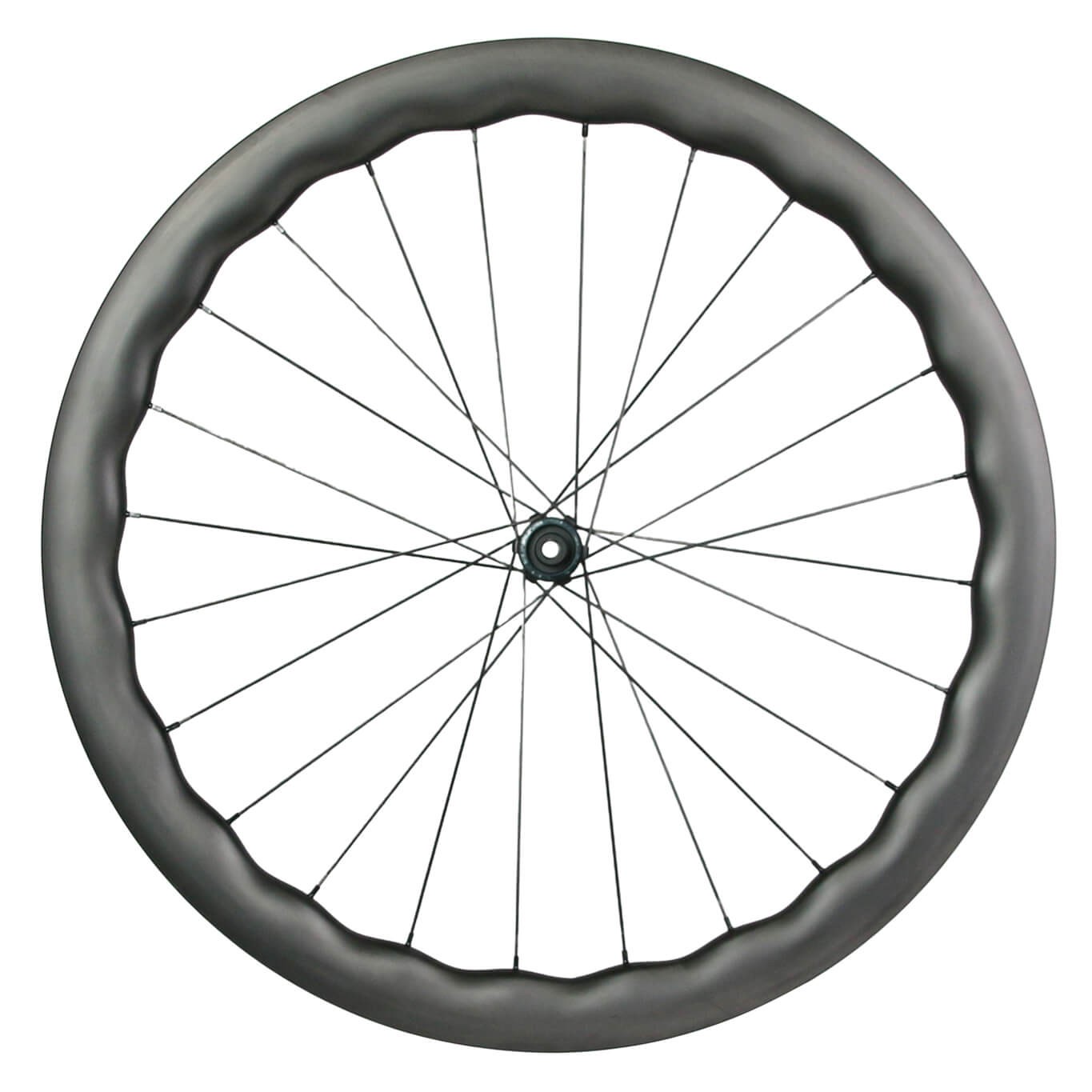

Wavy version carbon fiber rims
21mm inner and 25mm inner
Center lock disc brake 248g hubs
Pillar 1420, Sapim cx-ray spokes
24 spokes

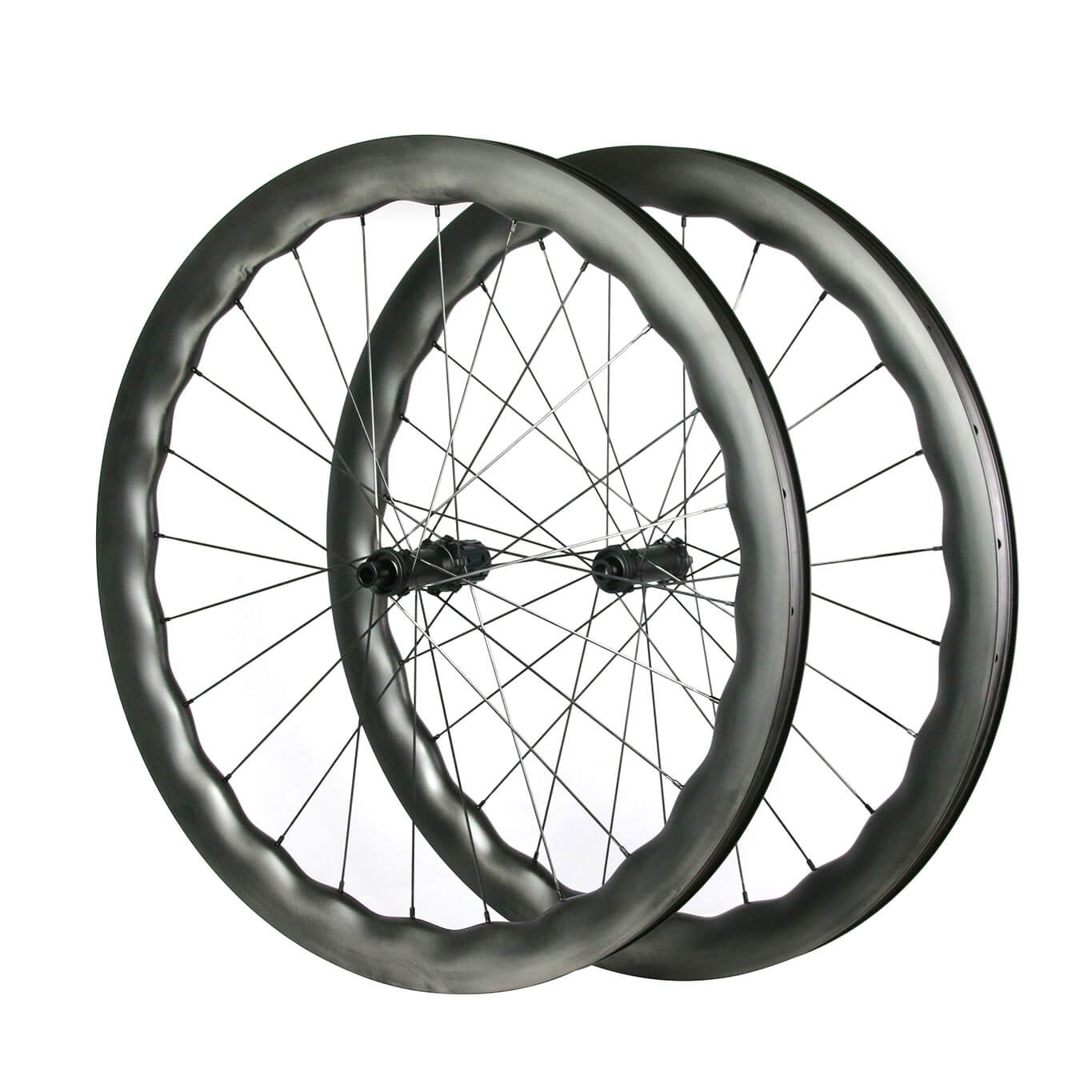

700c Wave Carbon Fiber Rims Road Bike Wheelset Disc Brake SR248 Hubs
Supper light wheelset parts, Lighter hubs lighter rims
2 cross spokes weave less spoke tension loss over time
Straight-pull asymmetrical design for more even tension on the carbon spokes
This wheel is suitable for people with very light weight

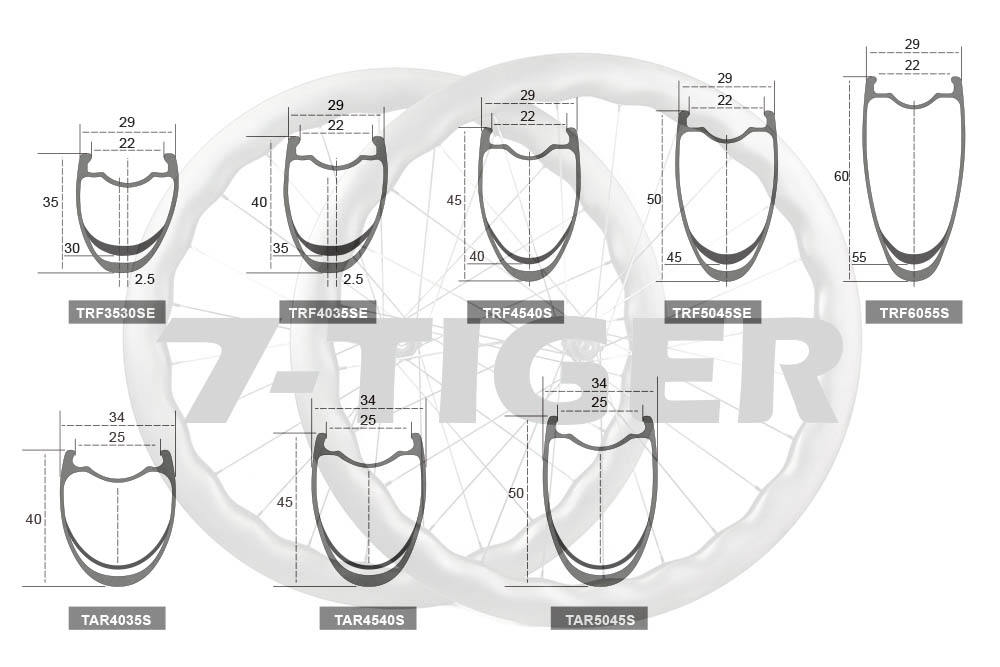

1. Rims model:
29mm Clincher rims 35/40/45/50/60mm
34mm Clincher rims 40/45/50mm
2. Rim weight:
| 22mm inner rims | 25mm inner rims | ||
| TRF3530SE | 370±15g | TAR4035S | 380±15g |
| TRF4035SE | 380±15g | TAR4540S | 395±15g |
| TRF4540S | 390±15g | TAR5045S | 410±15g |
| TRF5045S | 410±15g | ||
| TRF6055S | 470±15g | ||
3. Bicycle rims weave:
UD/Marble

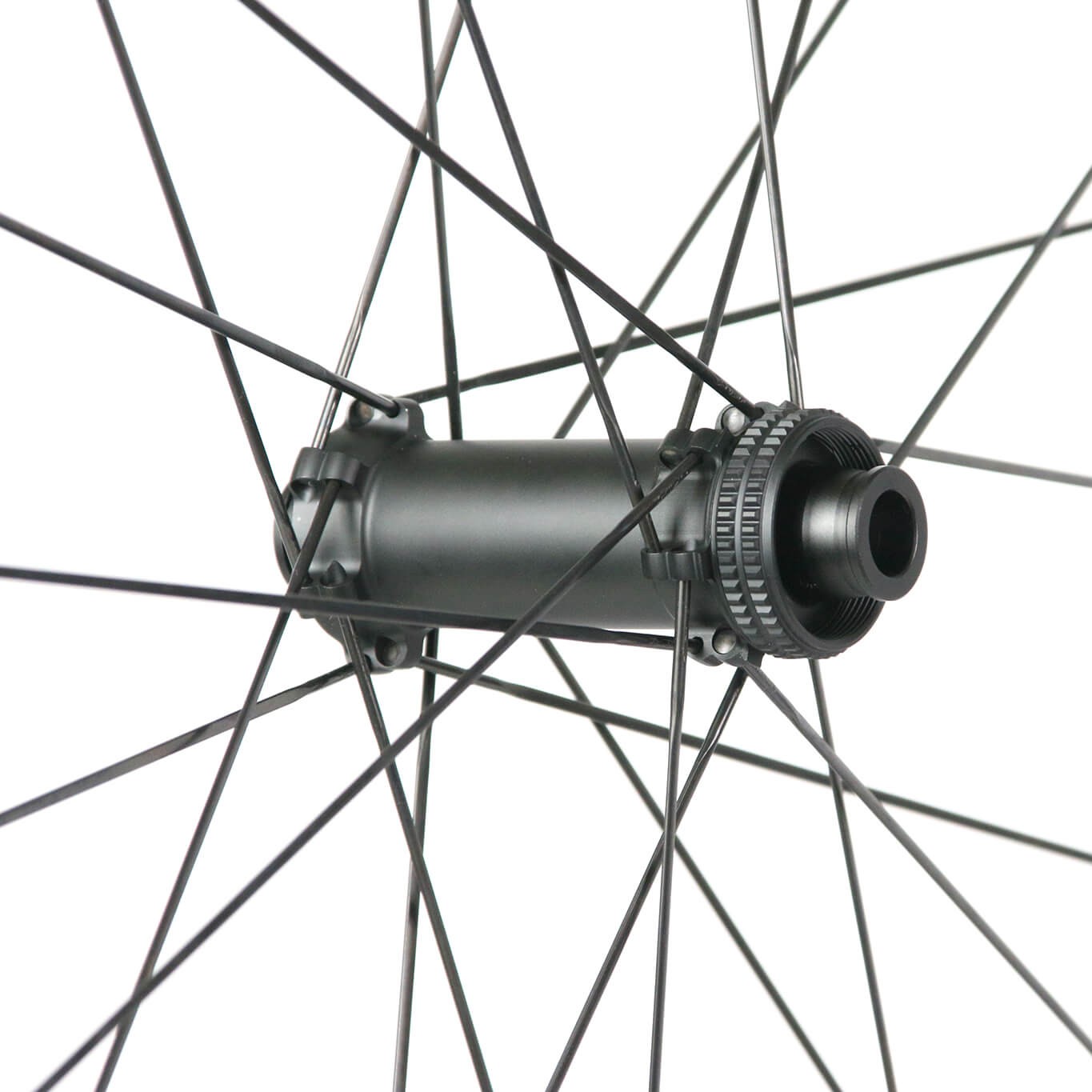

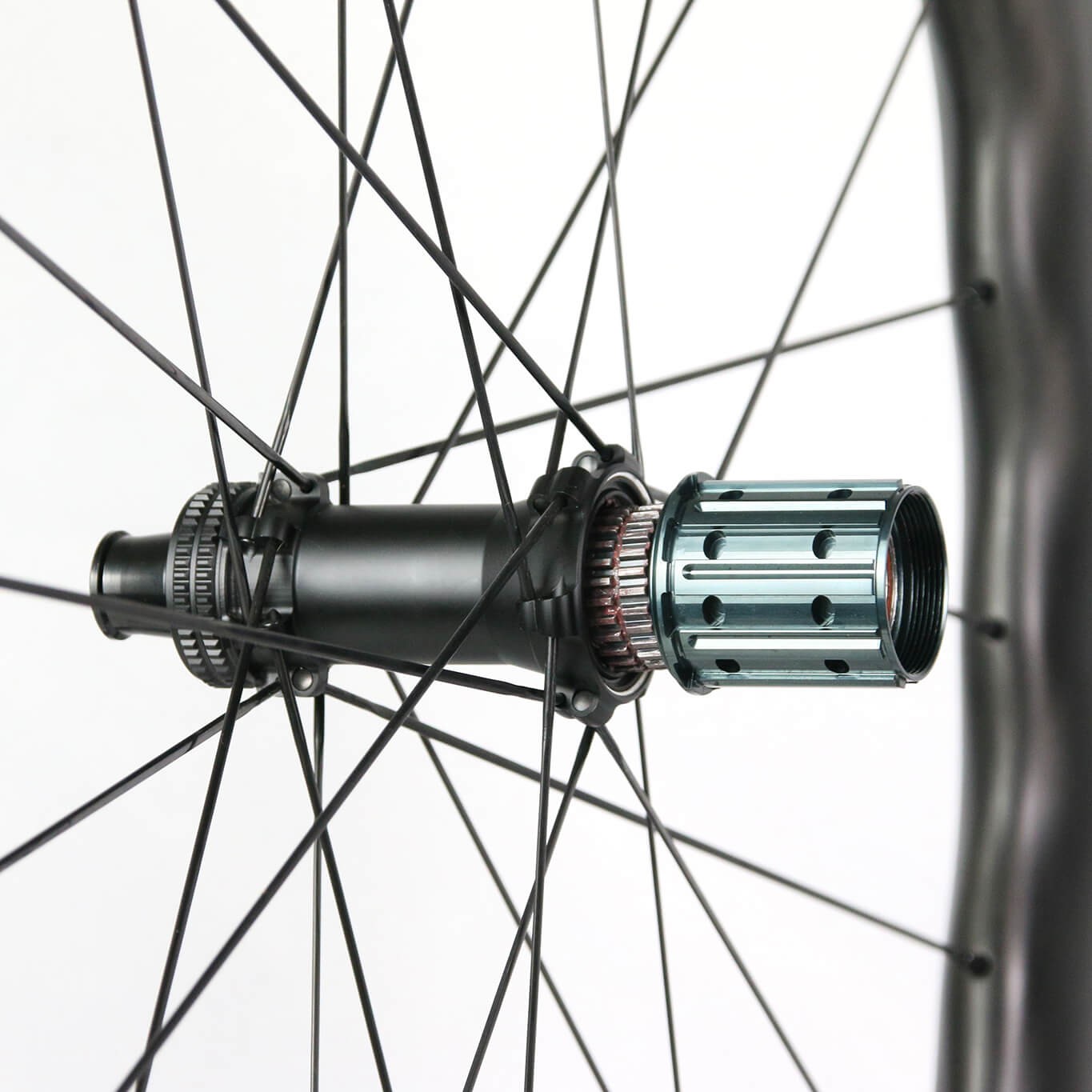

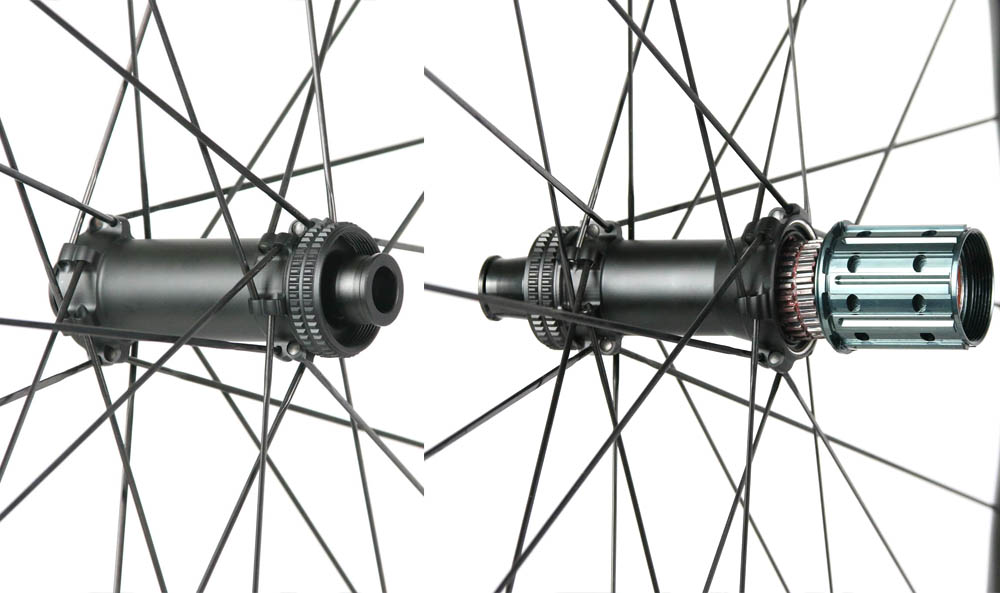

4. SR248 Hub:
Straight pull road bicycle disc brake center lock hub
142 x 12mm rear, 100 x 10mm front Thru-axle
Star ratchet 36T
Sram XDR, Shimano HG,
24-24 spoke holes
248 grams shimano HG
5. Spokes:
Pillar 1420 / Pillar wing 20/ Sapim cx-ray
6. Nipples:
Black aluminum alloy nipples

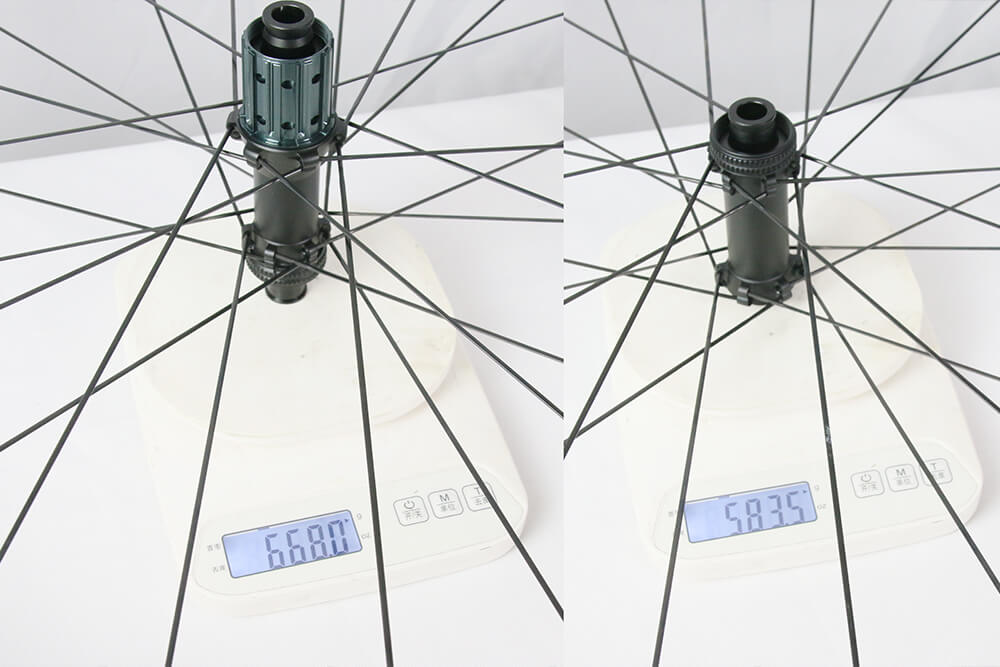

7. Wheelset weight:
| 22mm inner rims | 25mm inner rims | ||
| TRF3530SE | 1220g±3% | ||
| TRF4035SE | 1240g±3% | TAR4035S | 1240g±3% |
| TRF4540S | 1260g±3% | TAR4540S | 1270g±3% |
| TRF5045S | 1290g±3% | TAR5045S | 1290g±3% |
| TRF6055S | 1420g±3% | ||

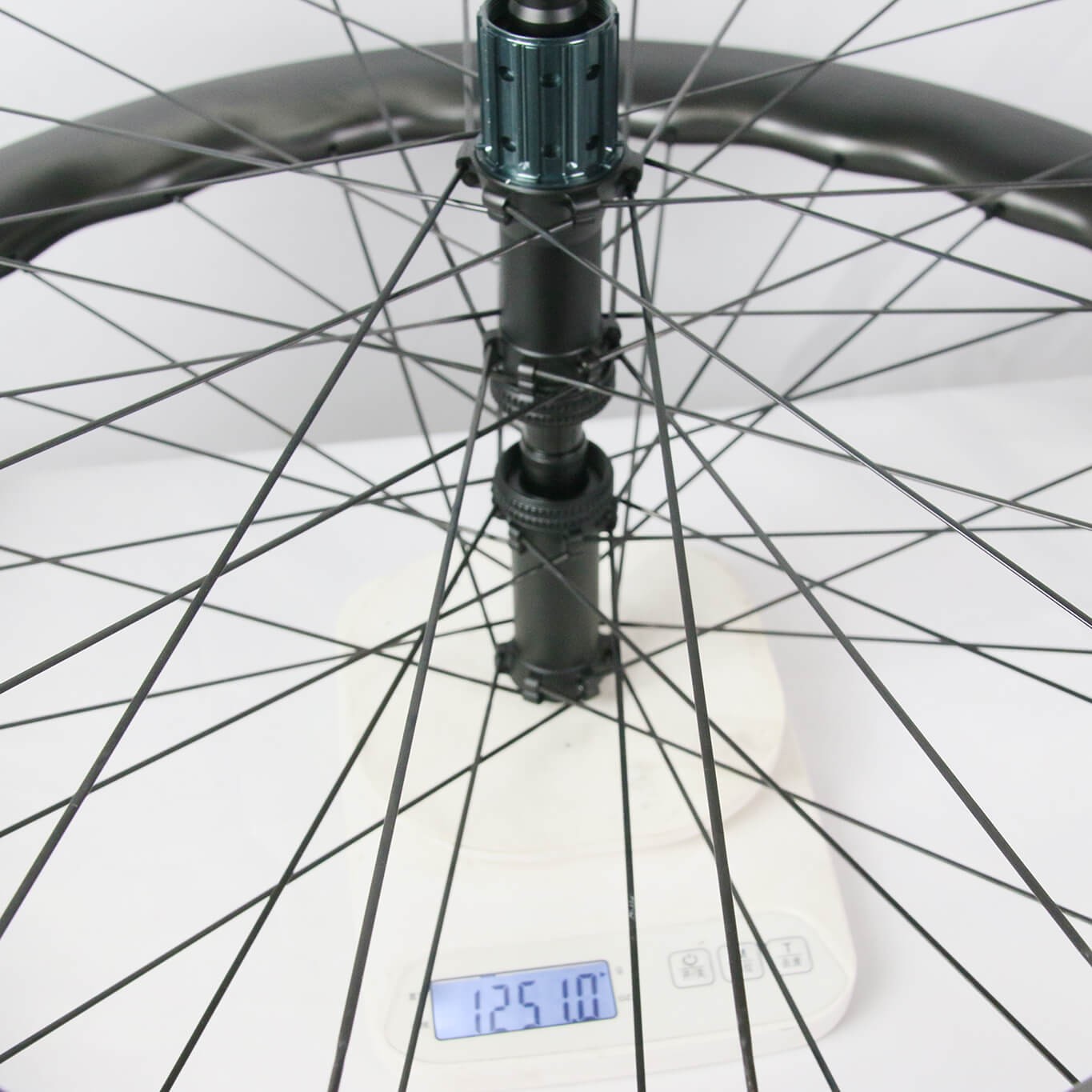

TAR5045S wheelsets weight
8. Rider max weight:
100kgs
9.Wheel Accuracy:
Wheel roundness tolerance: ≤0.3mm
Wheel lateral tolerance: ≤0.2mm
Wheel center tolerance: ≤0.2mm
10. Warranty:
2 years in normal used
