TRF80S Time Trial Track Fixed Gear Bike Wheelset Rims

TRF80S 700c 80mm carbon road bike clincher rims 28mm wide

80 DEEP | 28 WIDE EXT |  560G | CLINCHER TUBELESS READY

The TRF80S carbon rims, meticulously engineered for track bikes and time trial bike wheelsets, redefine performance with their precision design. Boasting a 28mm wide profile and 21mm inner width, these rims strike the perfect balance between aerodynamic efficiency and tire compatibility, ensuring optimal stability and speed on both velodromes and competitive time trial courses.

The UV-sharp finish adds a sleek, high-gloss visual edge, while the UD matt texture elevates the aesthetic with a sophisticated, understated elegance—ideal for riders who demand both style and substance. Weighing in at a featherlight 560g, these rims minimize rotational mass without compromising structural integrity, delivering responsive handling and explosive acceleration.

Designed for modern performance, the disk brake compatibility and 24-spoke hole configuration offer robust braking power and precise wheel build flexibility, making the TRF80S rims a versatile choice for competitive cyclists who refuse to compromise on speed, durability, or design. Whether conquering track sprints or dominating time trial stages, these carbon rims embody the fusion of cutting-edge engineering and racing-grade craftsmanship.

Item No.: TRF80S

Size: 700C x 28mm

Material: Full Carbon Toray T700 & T800

Type: Clincher, Tubeless ready

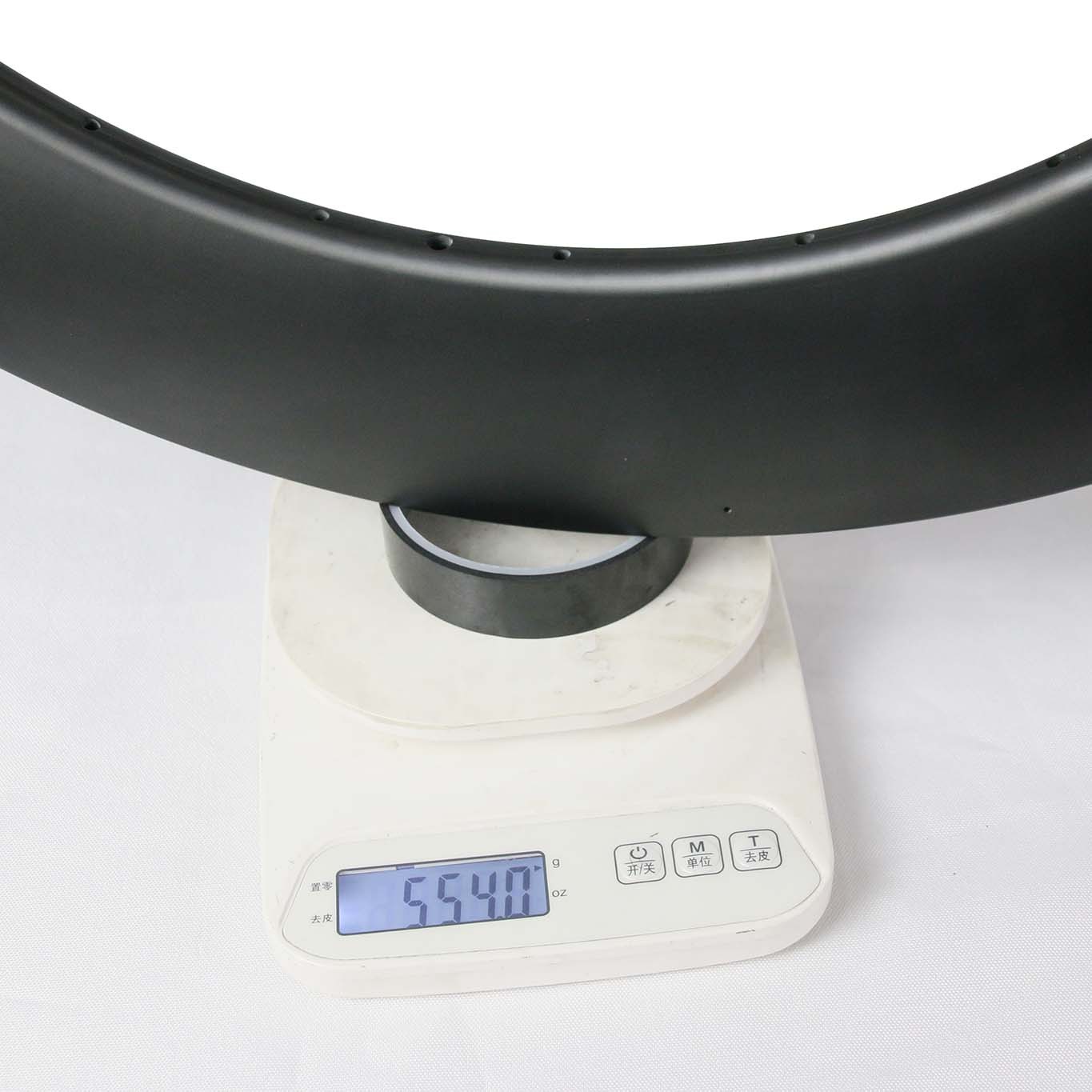

Weight: Standard 690±15g, Flyweight 560±15g

ERD: 480mm

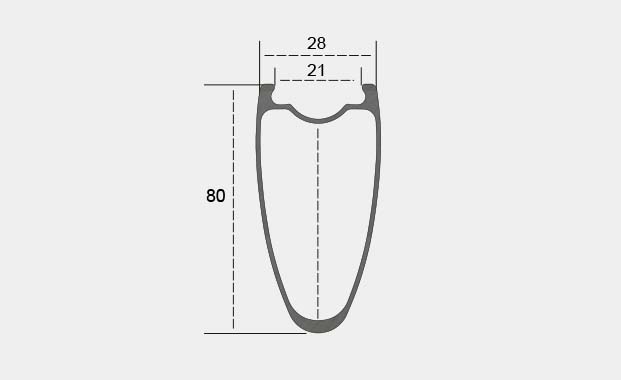

Outer Width: 28mm

Inner Width: 21mm

Depth:  80mm

Offset: 0mm

Brake System: Disc brake

Max Spoke Tension:  140kgf

Max Tire Pressure: 110psi/ 7.58bar

Max Weight Limit:  110kg

Applicable Bicycle: Road / CX / TT

Appearance: UD/3K/12K/X-weave

Finishing: Matte/Glossy

Standard: En Standard

Assembly Hole Dia: 8.5mm

Spoke Hole Dia: 4.5mm

Valve Hole Dia: 6.5mm

Roundess:<0.3mm
