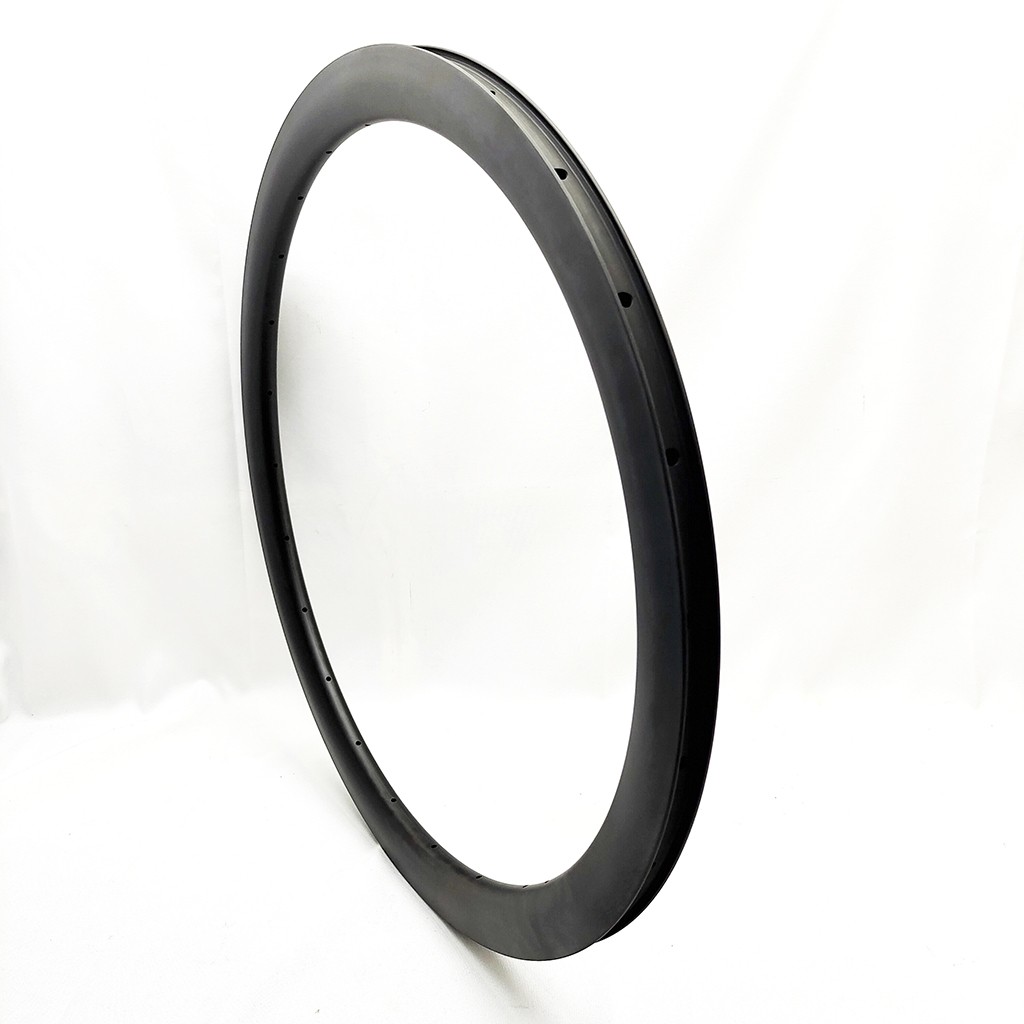

TRU45S 45mm carbon road bike clincher tubeless rim

Model: TRU45S
Bead Type: Clincher tubeless ready
Rim weight: 415g+/-15gr
Rim out wide: 25mm
Rim inner wide: 18mm
Rim depth: 45mm
Product can be used on road / CX bike wheels


45 DEEP | 25 WIDE EXT | 18 WIDE INT | 410G Flyweight

Tubeless-ready – designed to work excellently with normal clincher tires and tubes or tubeless tires.

Rounded U-shape 48mm deep aero profile

45mm carbon fiber tubeless ready rims.jpg

Item No.: TRU45S

Size: 700C

Material: Full Carbon Toray T700 & T800

Type: Clincher (Tubeless Ready)

Weight: Standard 415±15g, Flyweight 385±15g

ERD: 550mm

Inner Width: 18mm

Outer Width: 25mm

Depth:  45mm

Holes: 18-32H

Brake System: Disc / Rim brake

Max Spoke Tension:  140kgf

Max Tire Pressure: 110psi/ 7.58bar

Max Weight Limit:  110kg

Braking  System: Disc Brake

Applicable Bicycle: Road/CX/Gravel

Appearance: UD/3K/12K / X-weave

Finishing: Matte/Glossy

Standard: En Standard

Assembly Hole Dia: 8.5mm

Spoke Hole Dia: 4.5mm

Valve Hole Dia: 6.5mm
