M320 Mountain Bike Hubs Boost MTB hubs Center Lock 28 Spokes

SPECIFICATIONS

M320 center lock mountain bike hubs disc brake Mtb bicycle wheels hub

Material:  Al6061-T6 ;AL7075-6 axis

Model: M320-CL

Spoke holes:  Front 28 holes, Rear 28 holes

O.L.D: 110 x 15mm;148 x 12mm

Star Ratchet: 36T

Freebody:  Shimano 11s,  XD 12S, MS ,

Sealed bearings Front 2 and Rear 4 Bearings

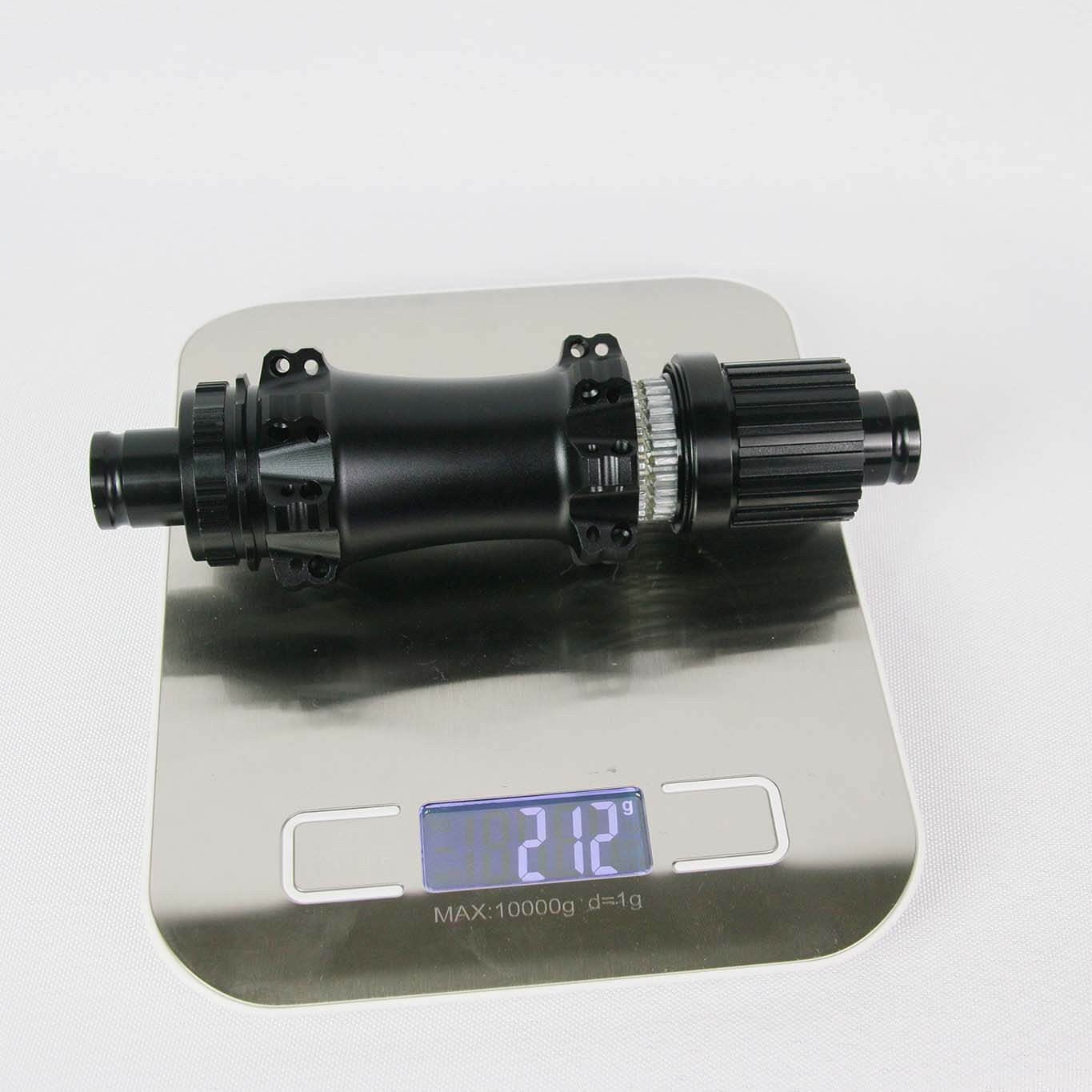

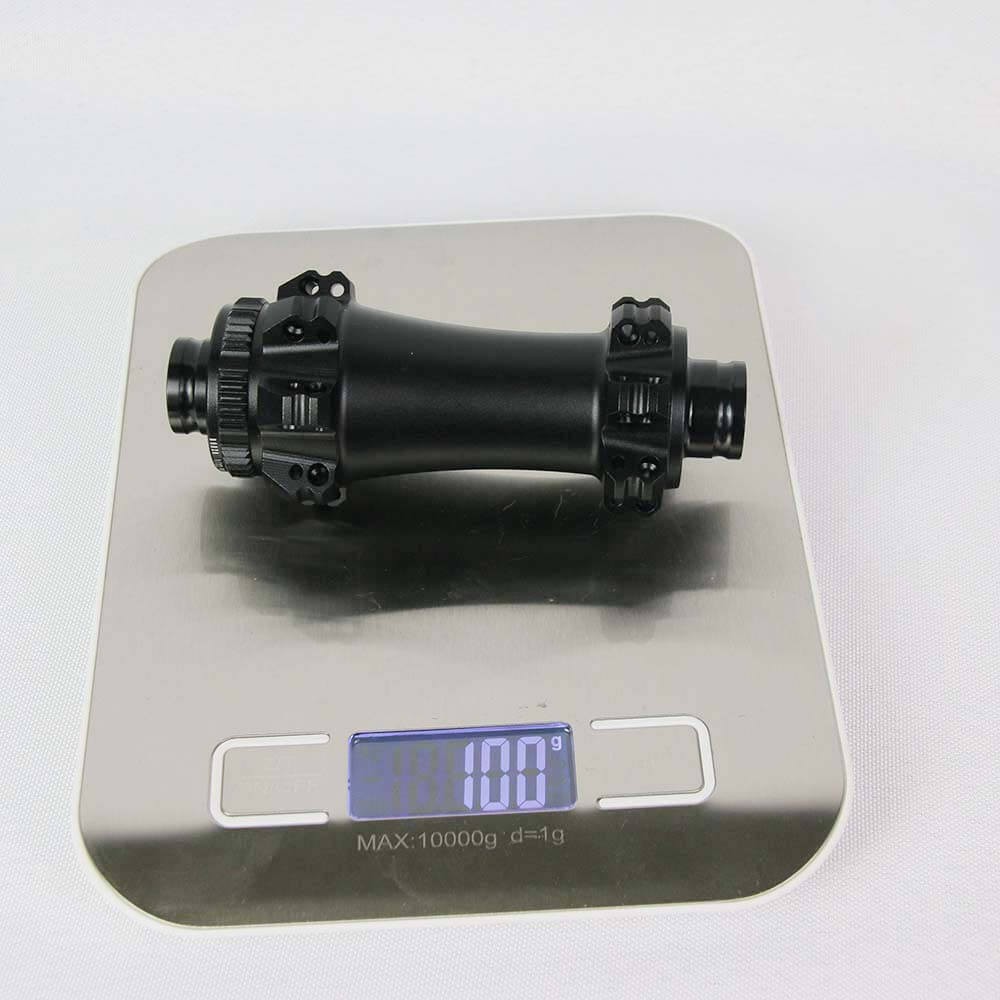

Weight:  312gr ( Front 100gr, rear 212gr MS)

Brake rotor:  Center lock

Color: Black Matt

Finish: anode

Warranty:  12 months

Shape: Customized as your request

It is easy to replacement hub of a wheels.

Spoke length reference

ERD: 590mm, 25mm deep TMC9325

Front wheel: 298mm + 298mm

Rear wheel: 298mm + 296mm
