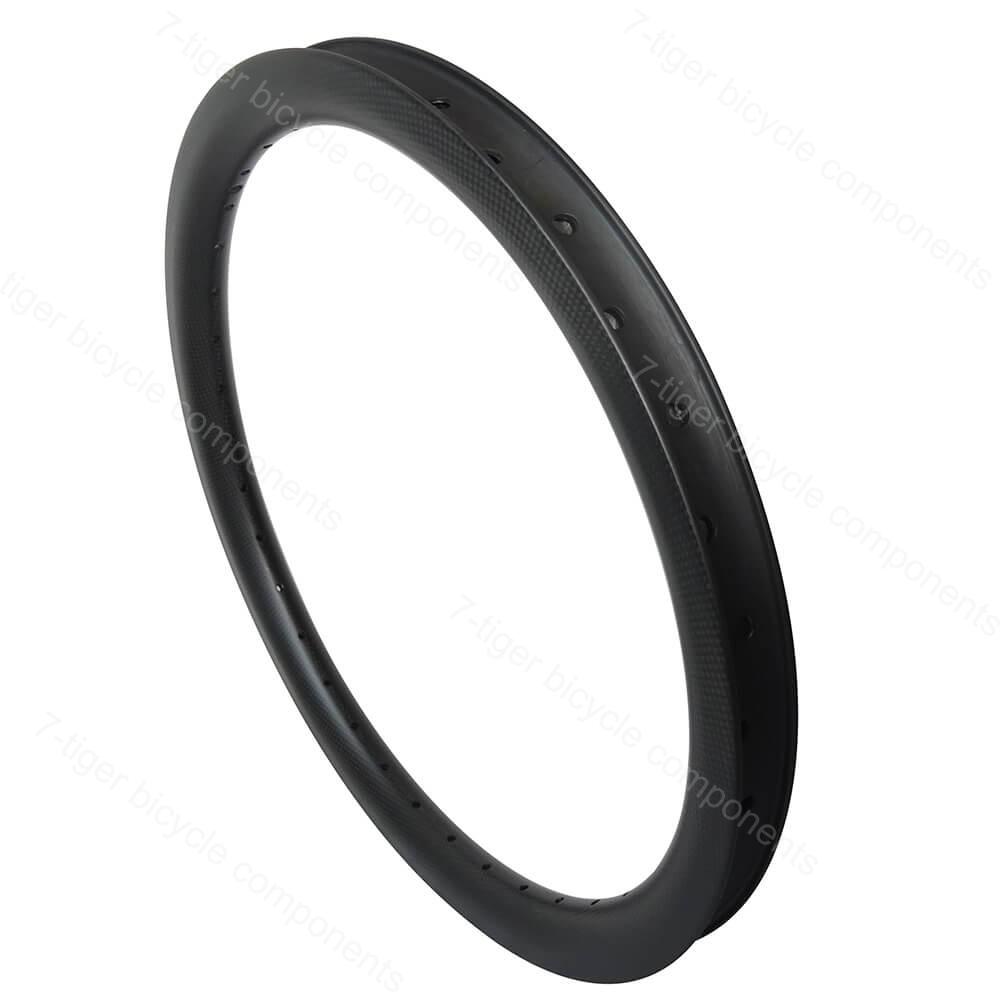

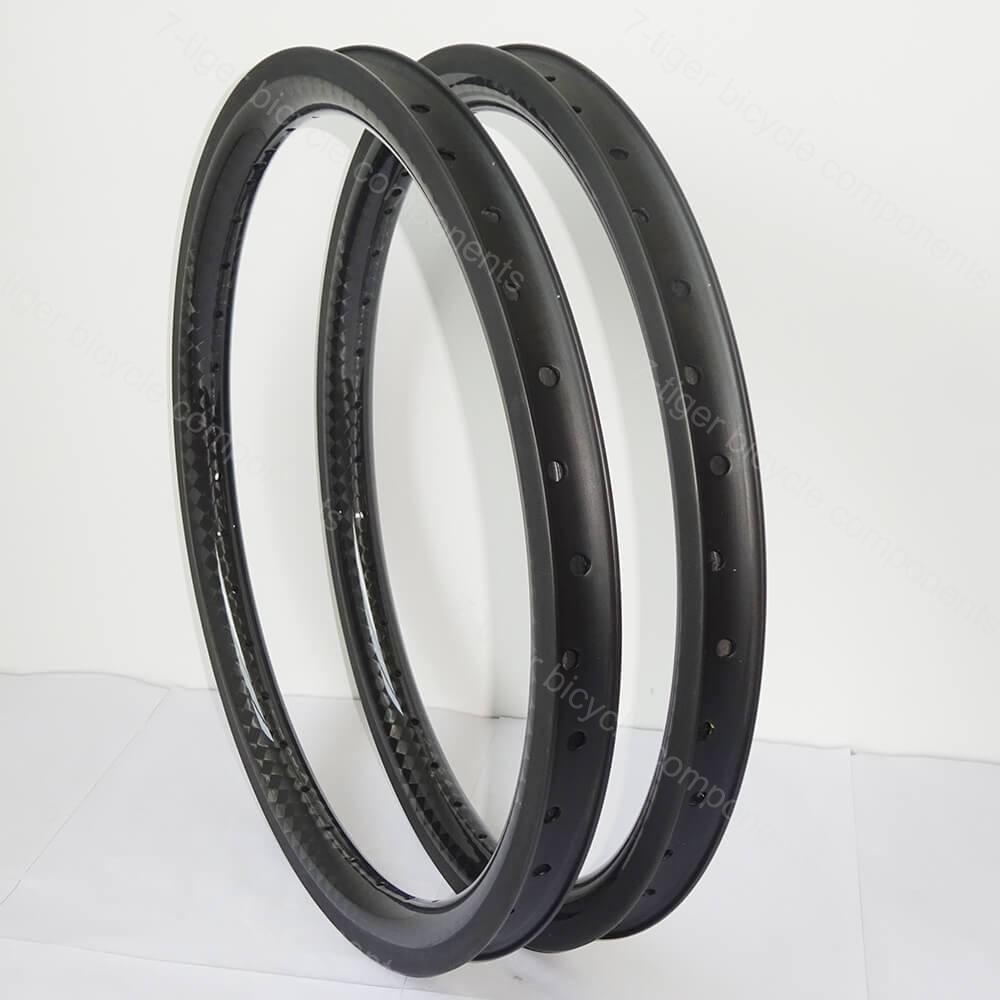

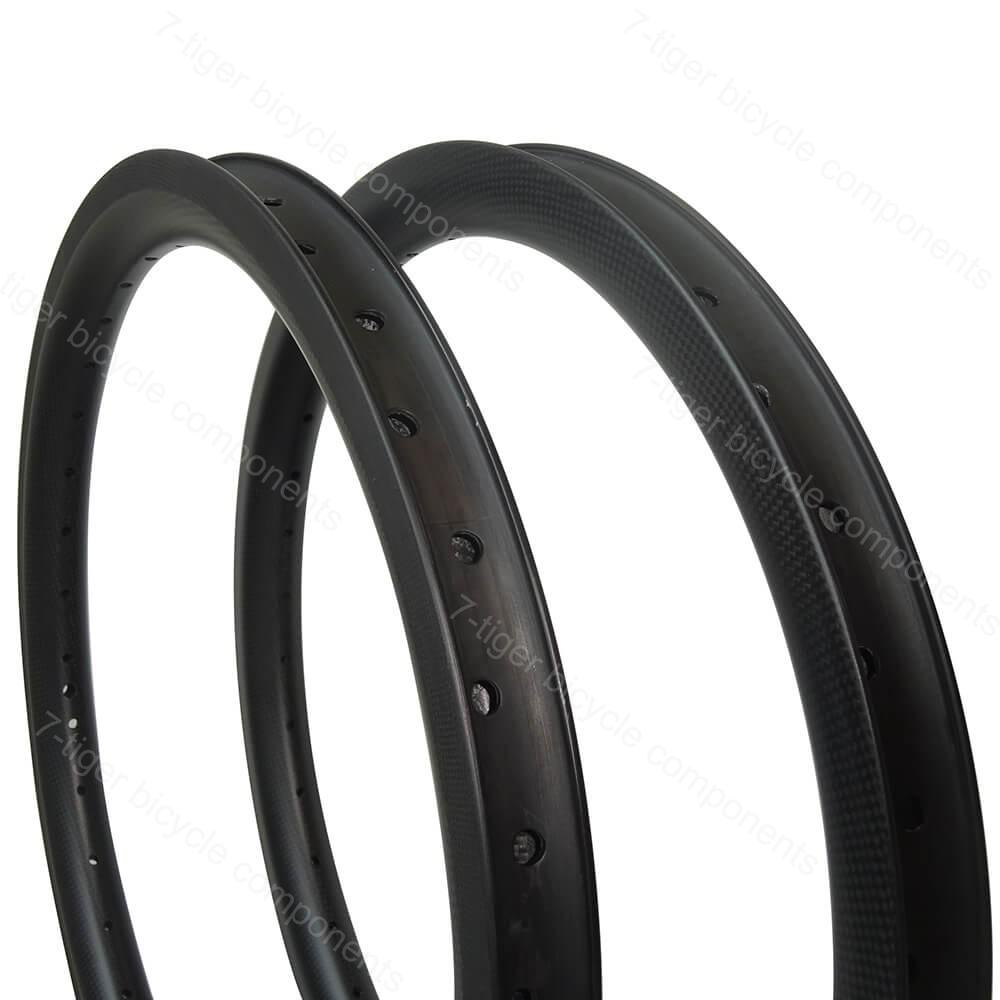

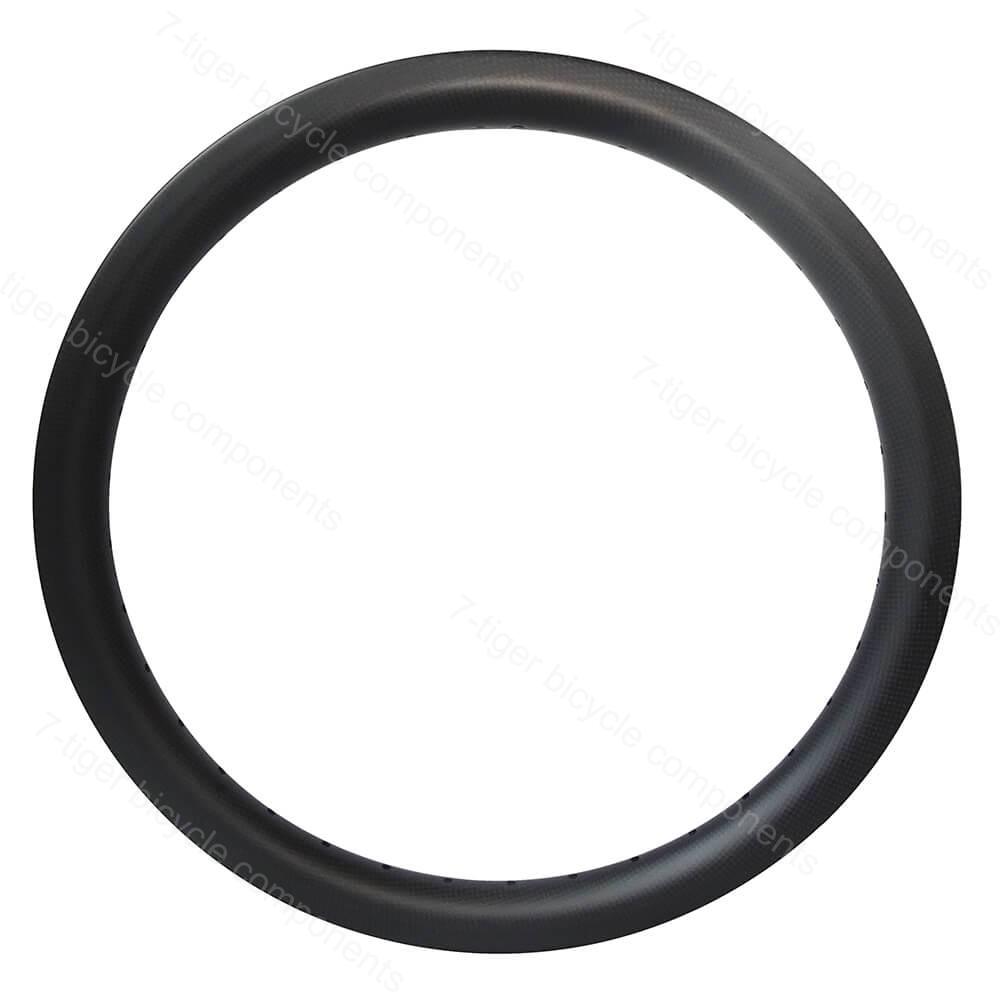

451mm 30mm Width Pro Rac Carbon Fiber BMX Rims

Bmx carbon rims length is 462mm

30 x 30mm 20 inches


Used for 20" small road bike, BMX Racing bike, Folding bike, Recumbent bike etc


1. Minimum order quantity(MOQ): 1 pc.

2. Spokes holes support 14H-36H holes or customized.

3. Support worldwide shipping, Lead time: 7-25 days.

4. 2 years standard warranty, any quality defects replace for free

5. Customized LOGO, according to OEM orders


Size: 20" 451

Model: TR451-3030C

Use: Folding bike/recumbent/bmx...

Type: Clincher

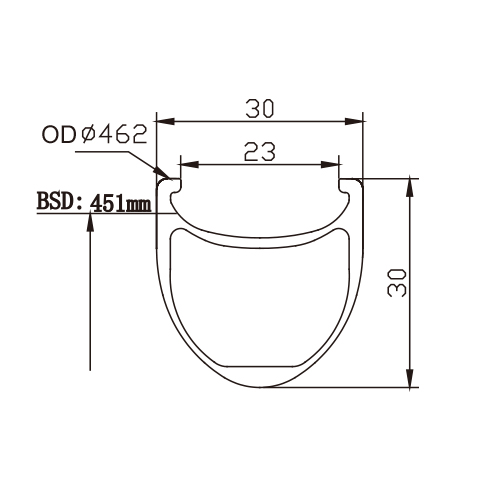

Depth: 30mm

Inner/outer Width: 23mm/30mm

ERD: 410mm

Weight: 350+/-10g

Brake: Disc / Rim brake

Weave: UD/3K/12K/Marble

Finish: Matte/Glossy

Holes: 14H to 36H

Weight limit: Max 120kg/265lb

Max spoke Tension: >300kgf

Tire pressure: Max 130 psi/8.96bar

Tire width: 40 to 62 recommended

   The TR451-3030C Pro carbon fiber BMX rims accept 20x1.60″, 20x1.75″, 20x1.80″, 20x1.95″, and 20x2.0″ tires.

   The rear rim with weaved Basalt braking surface can resist 240 Degrees Celsius, but a Carbon Brake pad is required for the best and safer braking performance.

    Rims without a braking surface can be used as a front rim but also a rear rim when using a disc brake.

    Spoke holes are drilled using advanced 4D drilling technology. This ensures an optimal spoke path which eliminates any extra stress on the spoke/nipple and makes the wheel greater strength and durability.
