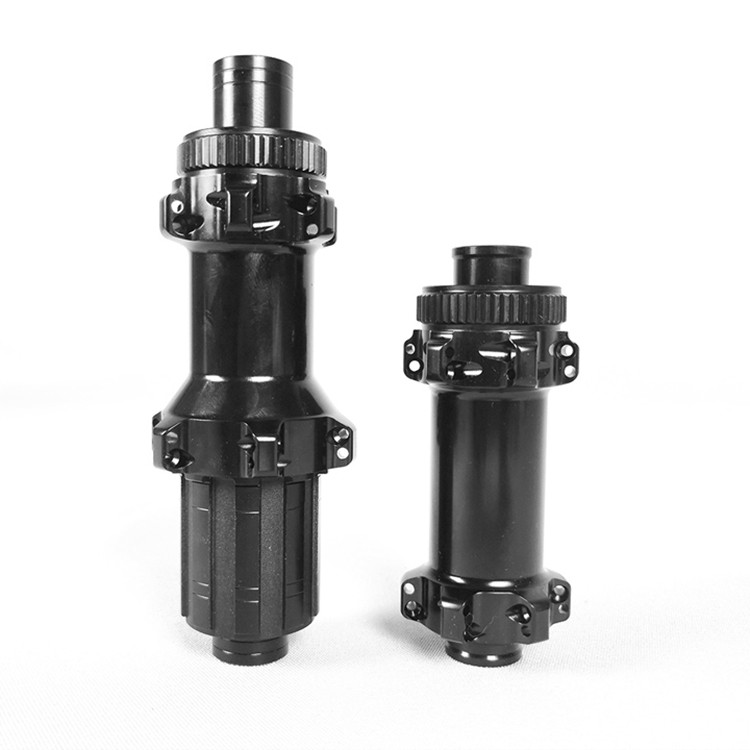

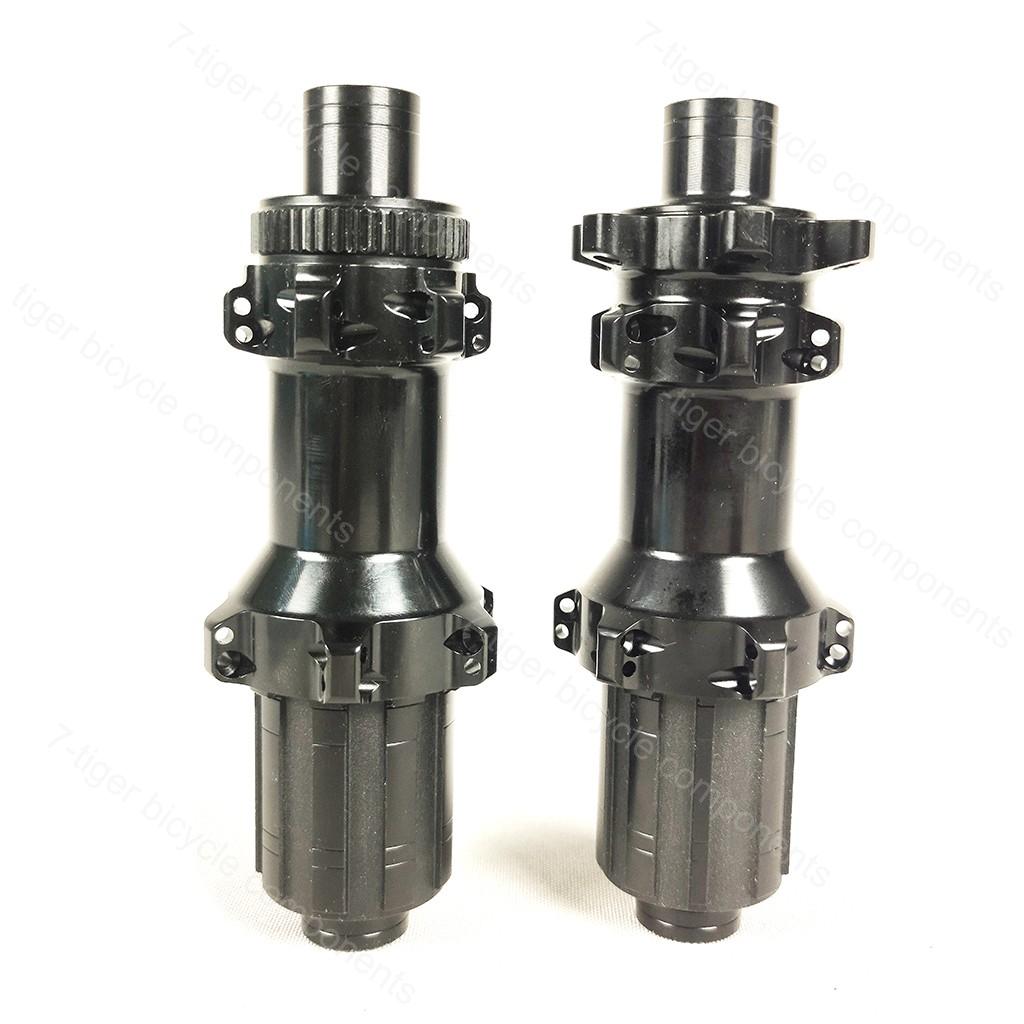

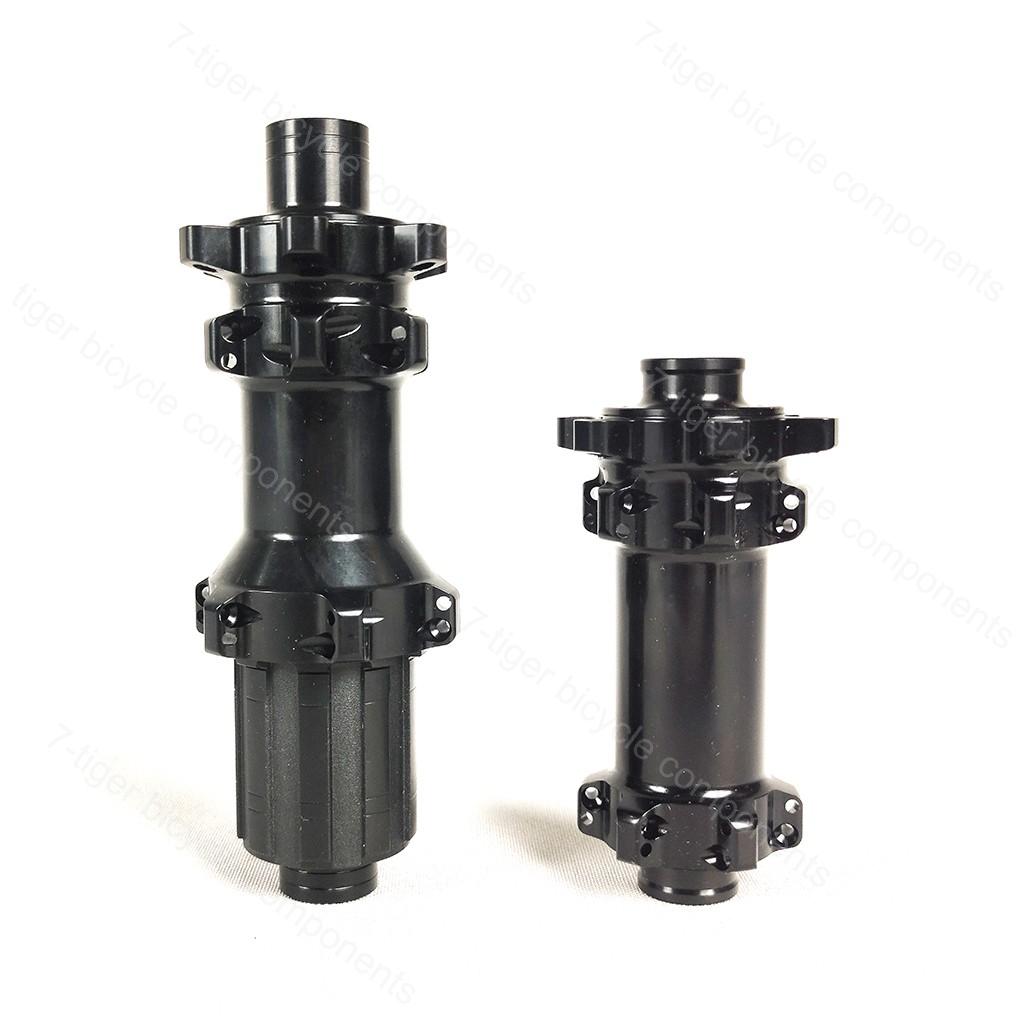

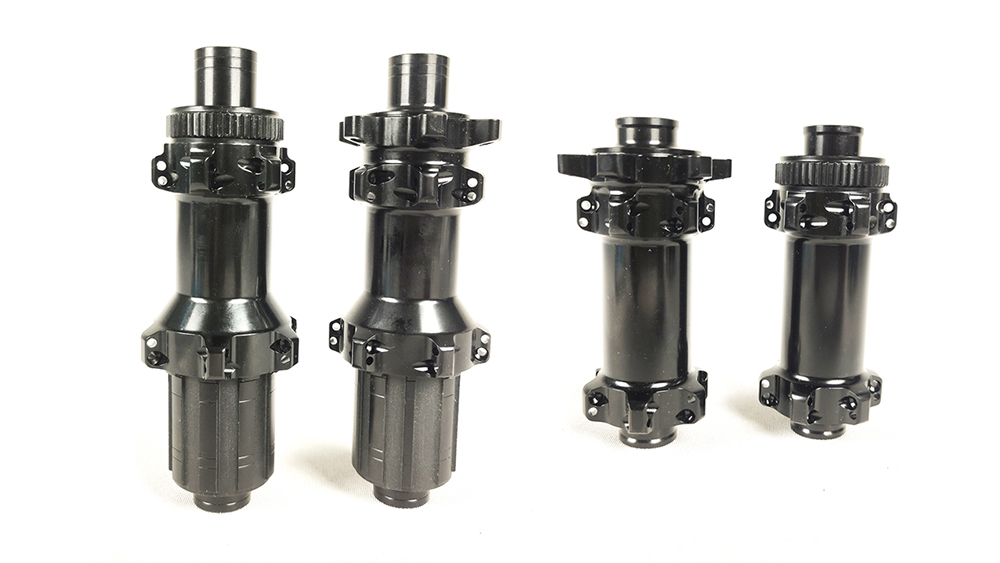

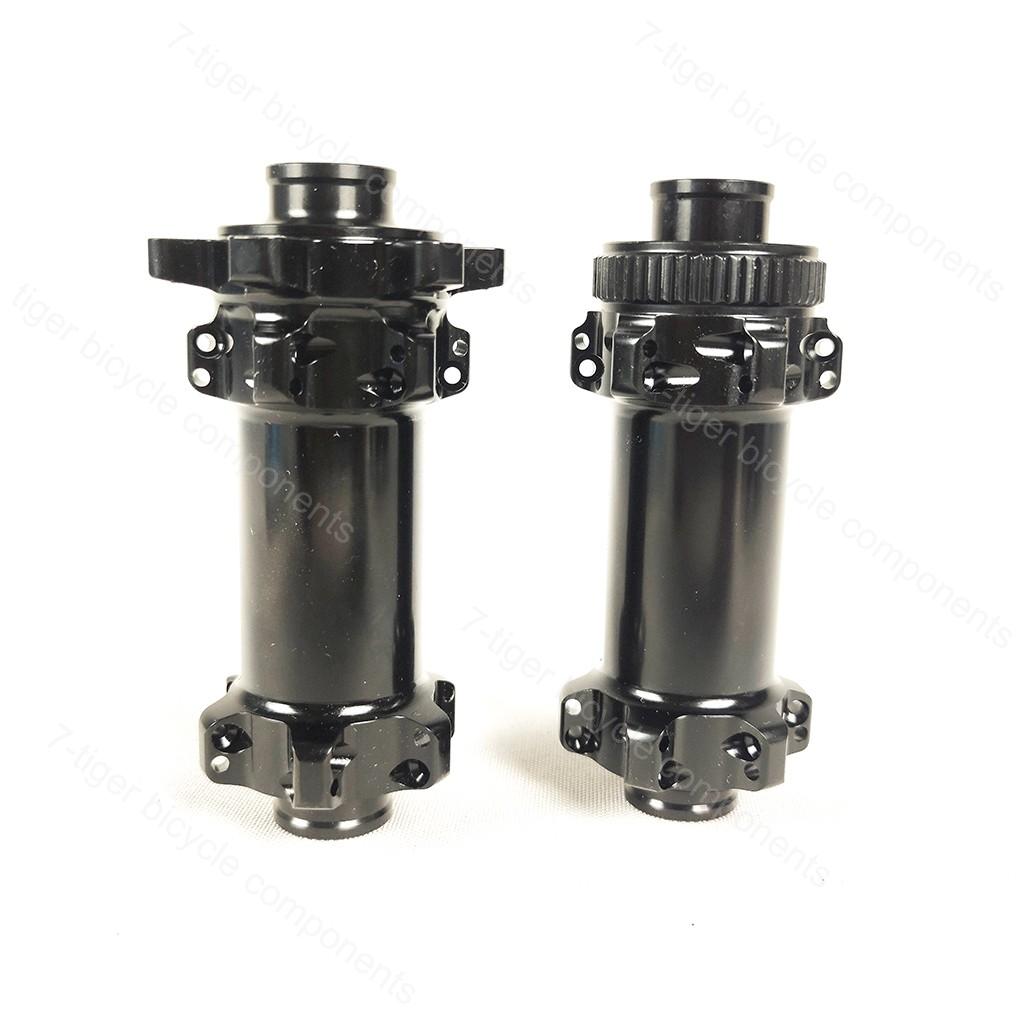

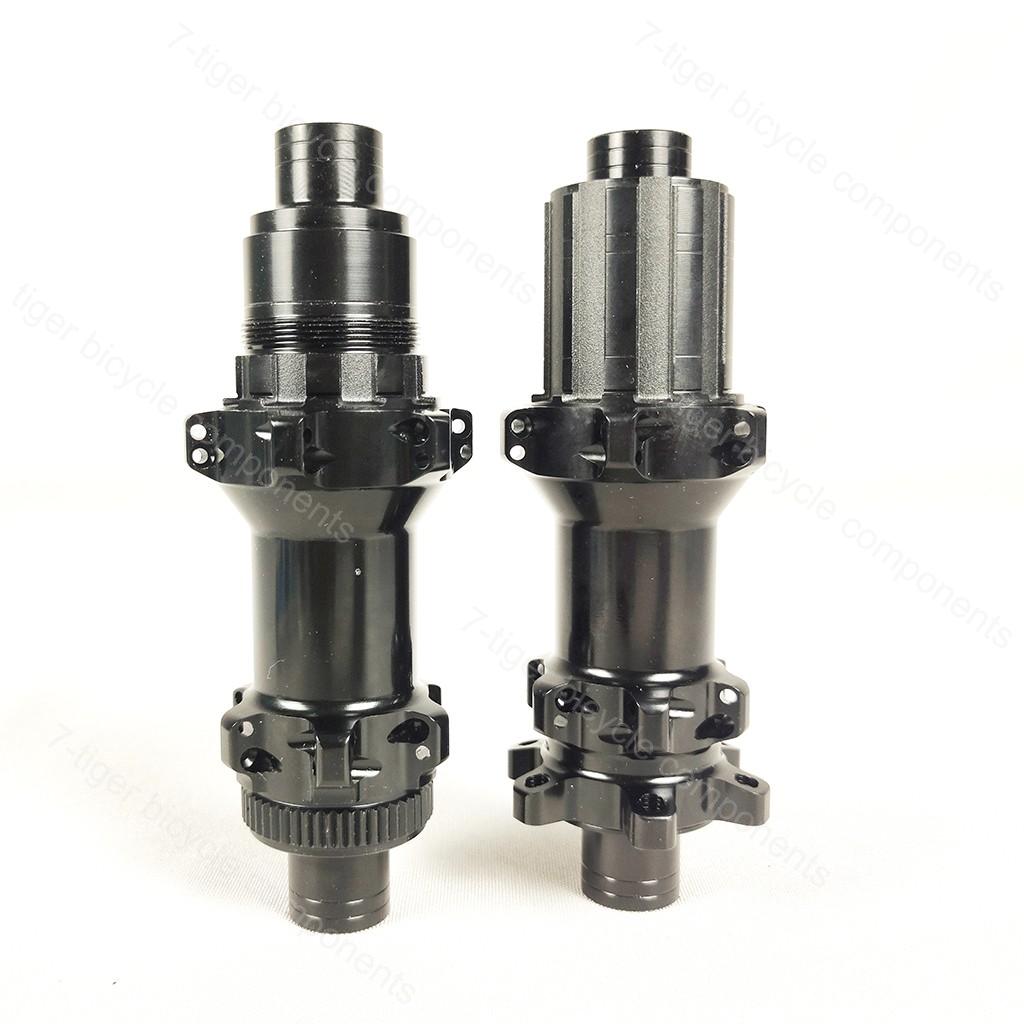

SR032 Straight pull disc brake road bicycle hub

SPECIFICATIONS

Black High Quality 24 Holes Center Lock Bike Hubs 12 / 100 12 / 142 TA  Road Disc Brake Hubs

Material:  Al6061-T6 ;AL7075-6 axis

Model: SR032

Spoke holes:  Front 24 holes, Rear 24 holes

O.L.D: 100 x 12mm;142 x 12mm

Freebody:  Shimano 11s, xdr 12s,

                  4 pawls single tooth 48 clicks

Sealed bearings Front 2 and Rear 4 Bearings  NBK

Weight:  319±5g ( Front 100gr, rear 219 gr)

Brake rotor: Center lock / 6 bolts

Color: Black

Finish: anode

Warranty:  12 months

Shape: Customized as your request

It is easy to replacement hub of a wheels.

Spoke length reference

ERD 570mm, 35mm deep rim

Front hub : 283mm + 283mm

Rear hub: 283mm + 280mm
